RJ-303-BK 6-Port Remote Oil Filter Mount Installation Instructions
Installation Instructions:
![](/images/managed/RJ-303-BK-6-Port-Remote-Mount-Installation-Instructions-5.jpg)
Step 1
Attach Remote Mount body to engine bracket desired position using 4 ea. ¼-20 bolts.
Step 2
Install 2 ea. -10AN fitting and 4 ea. Plugs into desired IN/OUT ports. (Lubricate O-rings prior to installation)
![](/images/managed/RJ-303-BK-6-Port-Remote-Mount-Installation-Instructions-6.jpg)
![](/images/managed/RJ-303-BK-6-Port-Remote-Mount-Installation-Instructions-7.jpg)
Step 3
Lubricate with oil, install 1/8” pipe plug using 3/16” hex wrench.
Step 4

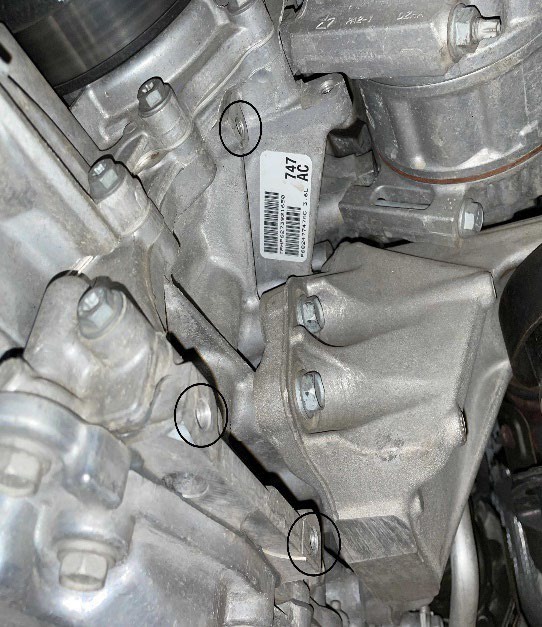

Locate 3 bracket mounting lower left side of engine.
![](/images/managed/RJ-303-BK-6-Port-Remote-Mount-Installation-Instructions-0.jpg)
![](/images/managed/RJ-303-BK-6-Port-Remote-Mount-Installation-Instructions-1.jpg)
Step 5

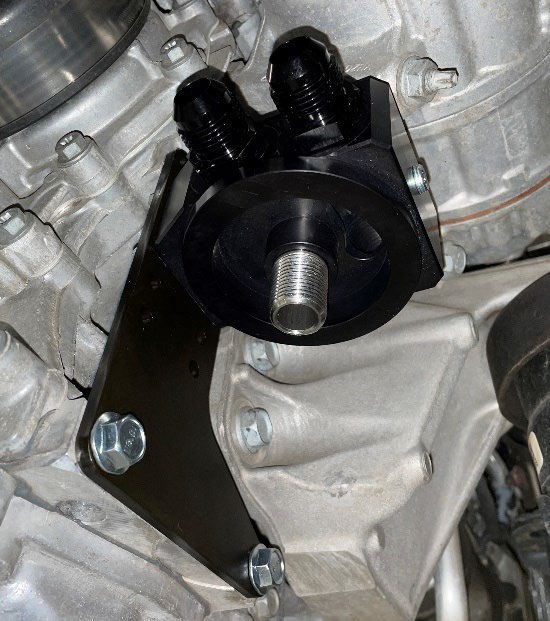

Install remote mount assembly using 3 ea. 8mm bolts.
Step 6
Install appropriate size oil filter that contains ¾-16 threads.
![](/images/managed/RJ-303-BK-6-Port-Remote-Mount-Installation-Instructions-2.jpg)
