Installing the Ford Cartridge to Spin-On Oil Filter Adapter FS-101-BK
Installation Instructions:
For use on 2.7L and 3.0L EcoBoost Engines
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions1.jpg?v=1682356409028)

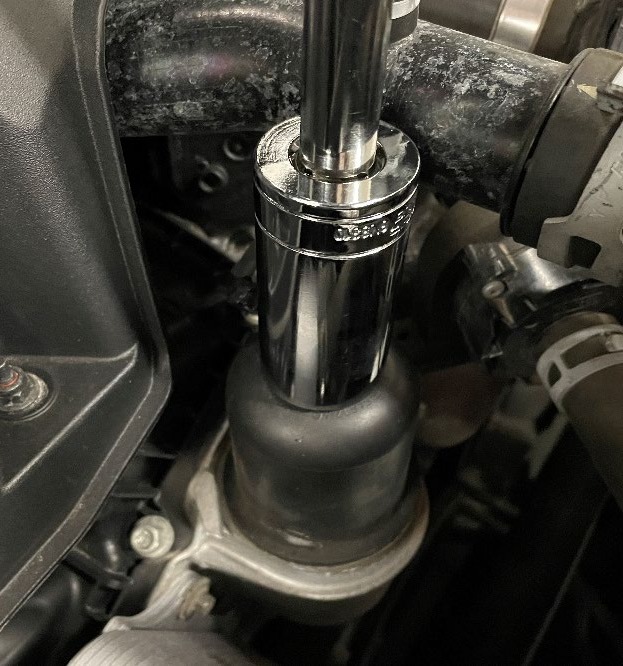

Step 1
Step 1: Remove oil filter using 1 1/16” socket.

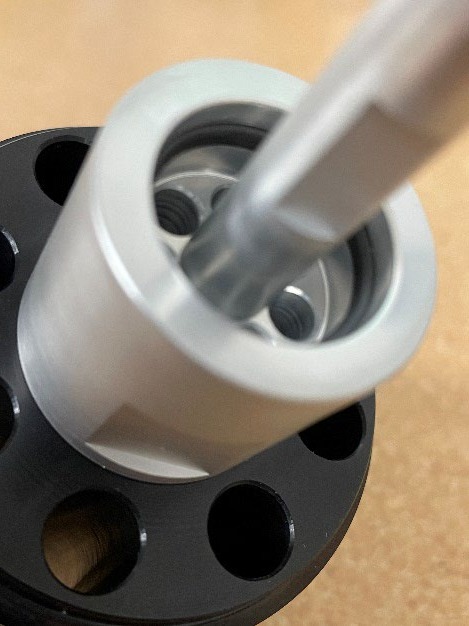

Step 2
Lubricate internal O-ring on docking collar
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions.jpg?v=1682356432466)
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions3.jpg?v=1682356440578)

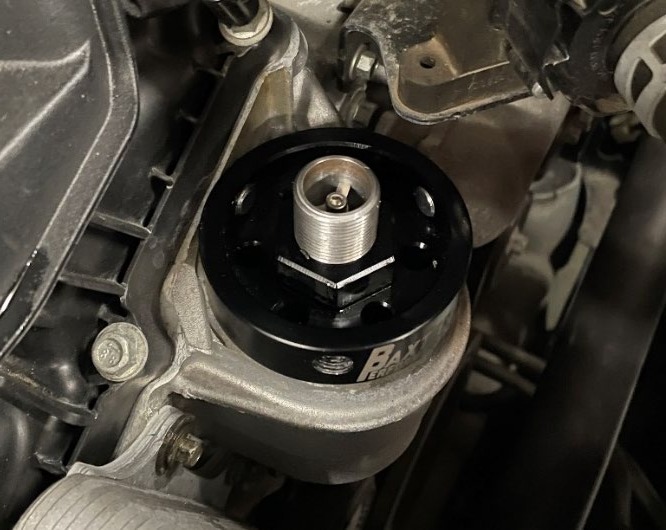

Step 3
Install adapter without body and tip
O-rings.
Torque to 40 ft.lbs. using 1” Deep Socket.
Establish side port to be utilized for air valve and
remove adapter.

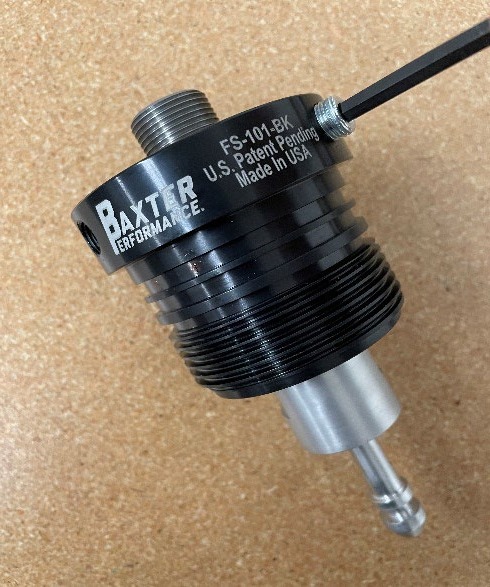

Step 4
Lubricate hex plugs with oil and install in two
ports not utilized using a 3/16 hex wrench.
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions4.jpg?v=1682356457416)
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions5.jpg)

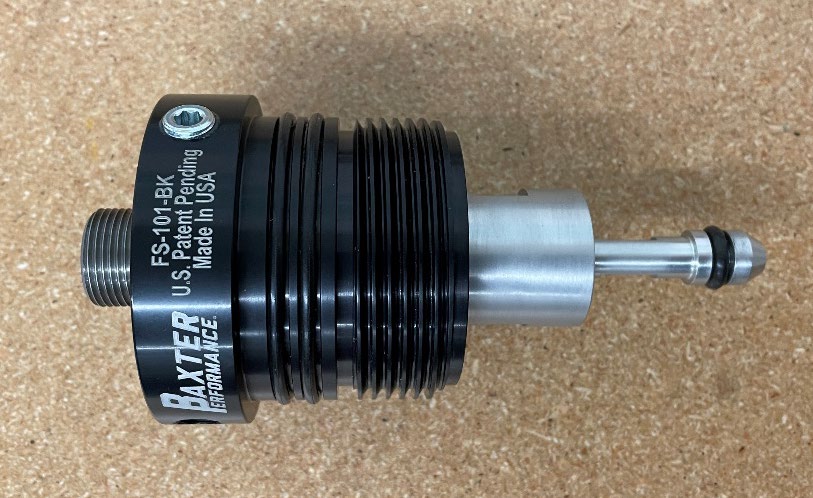

Step 5
Install O-rings on adapter body and tip, lubricate all O-rings with oil. Reinstall adapter and torque to 40 ft.lbs. using 1” Deep Socket.

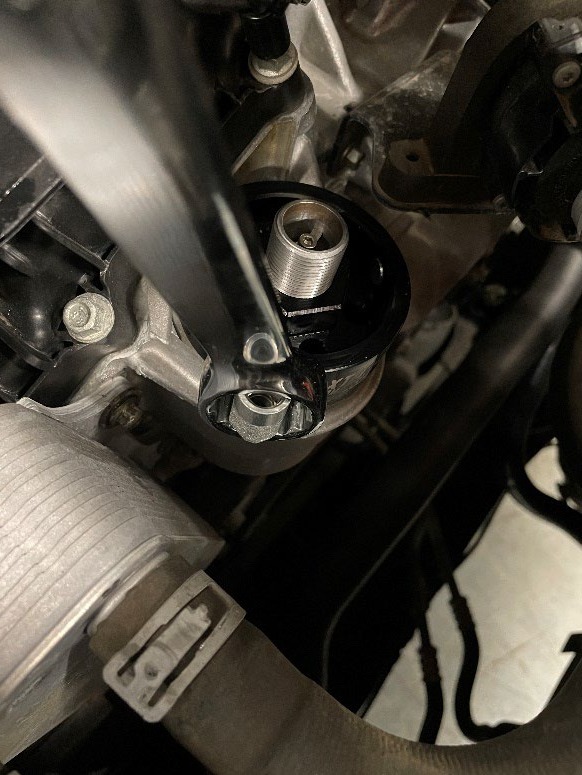

Step 6
Lubricate threads with oil and install 90° fitting (if using) with 15/16” 12-point wrench.
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions6.jpg?v=1682356470767)
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions7.jpg?v=1682356480553)

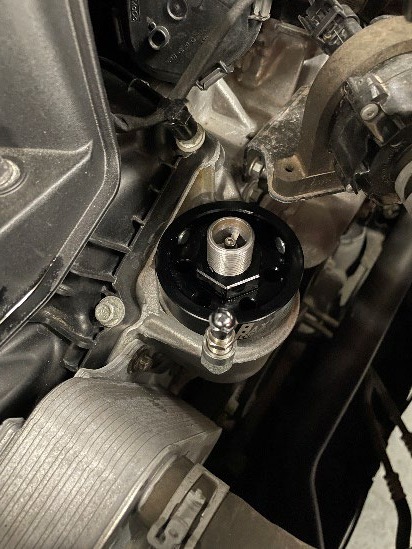

Step 7
Install schrader valve using thread sealing tape. (not included)

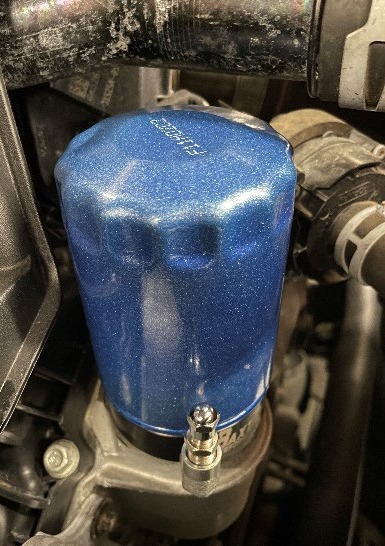

Step 8
Install appropriate size oil filter that contains M22x1.5 threads.
![](/images/managed/ford-cartridge-to-spin-on-oil-filter-adapter-fs-101-bk-installation-instructions8.jpg?v=1682356488425)
Prior to servicing for oil and filter change, apply compressed air with air chuck for 3 seconds, this will evacuate oil filter for easy and clean oil filter removal.
